Detail
• Voltage and Power Requirements: 3 phase 400vac 50Hz
32A
•
Standard units come complete with a 4 metre trailing lead 4mm2
3 core + E
•
Main Heating Plates: 3 x energy efficient heating coils in each of the
2 plates.
•
Tray Heating Plate: 3 x energy efficient heating coils
•
Sound Rating: 52dBA
•
Index of Protection: IP56
•
Weight: 347kg
•

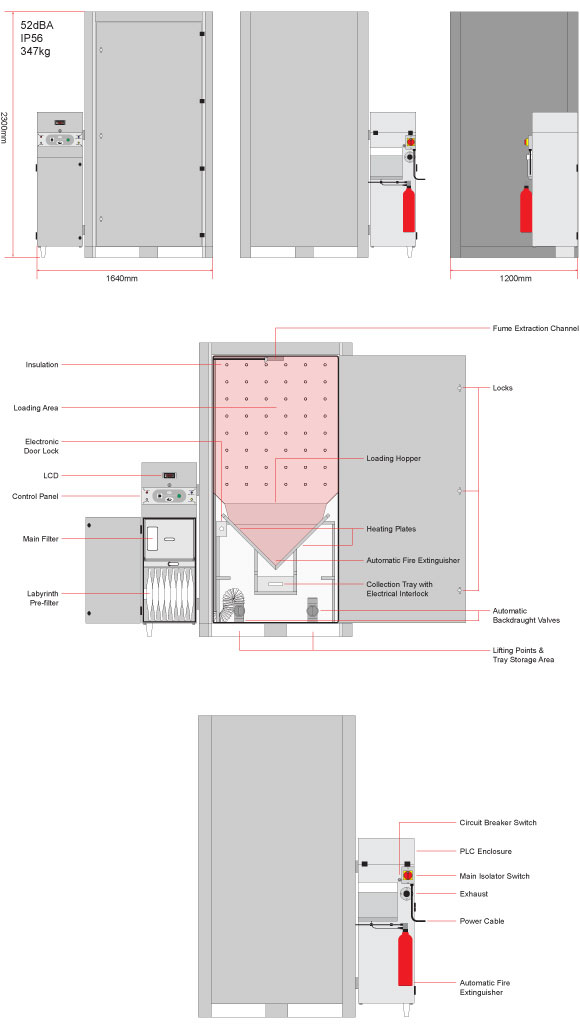

Height: 2.3m (not including exhaust stack if fitted)
•
Width (including fume extraction unit): 1.64m
•
Depth: 1.2m
•
Loading Capacity: Approx 2 cubic metres.
•
Fume Extraction Unit: Single phase 230vac variable speed 1
stage brushless blower 0.204kW F.L.C. 1A Max.
•
Fume Extraction Filters: Specialised Labyrinth™ pre filter
and a main chemical filter.
•
All machines are constructed of corrosion resistant stainless
steel and feature a lifting point for a fork lift.
|
|
|
